Designing a Bathroom Renovation? Here Are a Few Electrical Tips You Should Know!

Designing a Bathroom Renovation? Here Are a Few Electrical Tips You Should Know!





If you’re planning a bathroom renovation, it is important to consider both the electrical layout and lighting. Choosing the right lighting has aesthetic benefits such as making the room appear larger, as well as highlighting the features and style of the bathroom.

Because of the increased moisture in bathrooms, there are electrical safety zones for you to consider in your layout as well as your selection of lights and appliances. Here are some electrical tips to consider in the design of your bathroom.

PROFESSIONAL ELECTRICIAN IN BRISBANE & SURROUNDING SUBURBS

If you’re searching for the best licensed electrician in the Brisbane area and surrounds (Alderley, Ashgrove, Bardon, Newmarket, Paddington, Stafford, The Gap), look no further than Allyn White Electrical.


1. Know your electrical safety zones

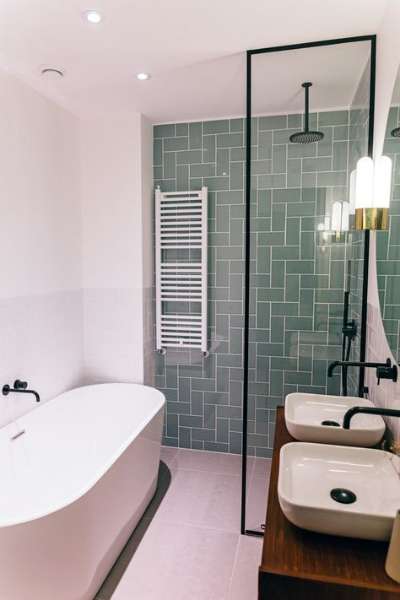

In Australia, all electrical work must comply with AS/NSZ 3000, which includes specific requirements for moisture-prone areas. To minimise the risks of electrical hazards in your bathroom, there are electrical safety zones. A bathroom can be divided into four electrical zones which assist with safe electrical placement.

Best Brisbane electrician | Allyn White Electrician

- Zone 1: Interior of bath or shower space and inside the vanity basin. These are best known as the areas that collect water. Only low voltage lighting is allowed and an IPX7 rating is required for lighting in these areas. Ingress Protection (IP rating) refers to the level of protection against the intrusion of dust, water, or accidental touch from the electrical enclosure.
- Zone 2: Above the shower, bath, or basin up to a height of 2.5M (IPX4 lighting)
- Zone 3: 600mm radius outside of Zone 1 (options include: IPX4, double insulated, low voltage or lights recessed into the ceiling).
- Zone 4: Outside of Zone 2, considered the least restrictive of all zones (no IP ratings).

Typically, 12V IPX7 lighting is the only option for areas in, and immediately surrounding a water source. An example of this is an LED strip light in the shower niche. “The transformer from 240V to 12V will also need to be located in zones 3& 4, to ensure that it, and any 240V wiring, is protected from water exposure.

Best Brisbane electrician | Allyn White Electrician

If you’re considering where to place light switches and power points, you will also need to pay attention to electrical safety zones. Both light switches and power points must be located in zones 3 & 4, in addition, residual current devices (RCDs) must be used for all electrical sources in the bathroom to reduce the risk of electric shock. Minimum distances and IP ratings for power points and switches still apply to depend on whether they are in zones 3 or 4.

2. Use wall mounted lights around the vanity for better illumination

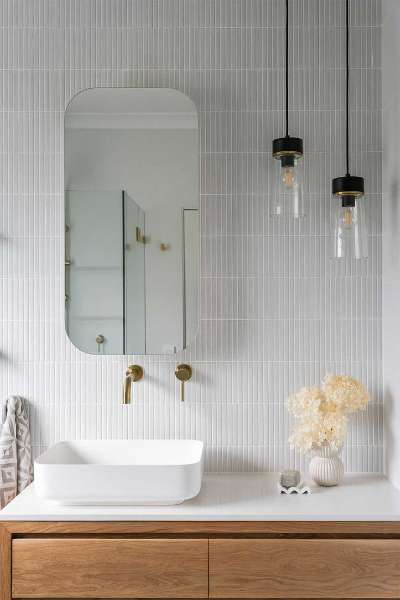

When it comes to lighting the mirror above your vanity, consider wall-mounted lights (also known as task lights) such as wall sconces or a light positioned above the mirror. These can be in addition to ceiling lights, but they provide superior illumination for things like shaving or makeup application.

Best Brisbane electrician | Allyn White Electrician

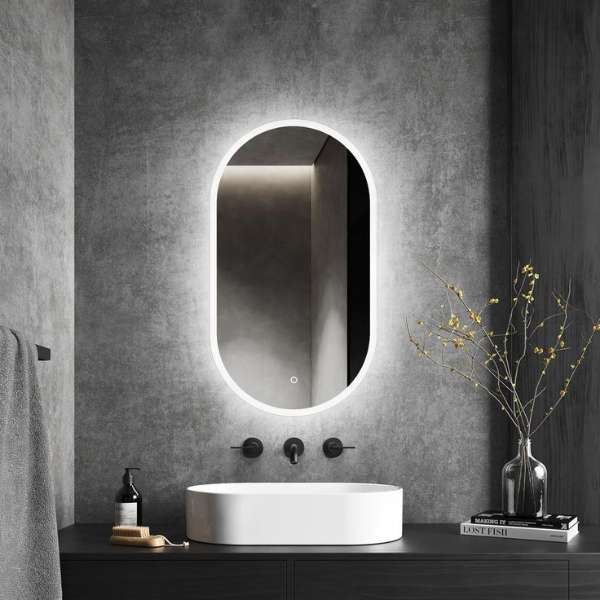

Whilst wall mounted lights are extremely functional, don’t forget vanity lights, or back-lit mirrors. Vanity-mounted lights are extremely popular as they can provide soft, accented lighting for the sink and vanity, as well as minimising harsh, bright light in the middle of the night.

Best Brisbane electrician | Allyn White Electrician

3. Match power point styles with the rest of the bathroom

It may be something we don’t think too much about but matching the power points in the bathroom with other features such as tiles or fixtures can really add a premium look and feel. If you have a simple white design, then regular white power points can be fine. However, if your bathroom features other colours, it’s worth considering alternatives.

Another consideration is installing a power point inside your vanity as this can give your bathroom design a clean, attractive look as you can charge electric shavers or electric toothbrushes neatly inside the vanity.

4. Consider alternatives to heat, light, and fan combination devices

Shocking as it sounds, there are better alternatives out there to the popular heat, light, and fan combination device. Consider individual systems for each function in your design plan.

Best Brisbane electrician | Allyn White Electrician

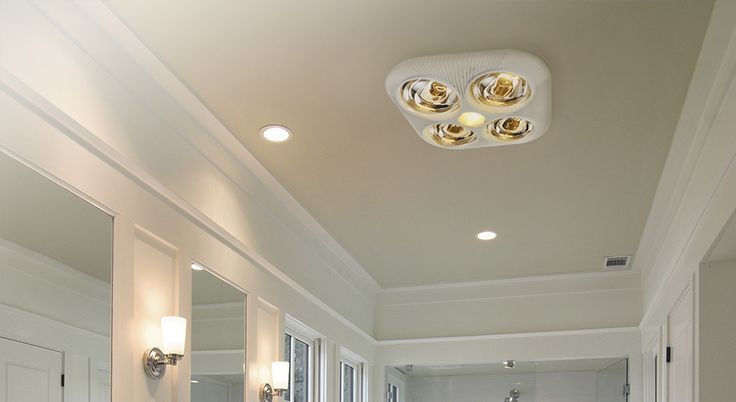

For example, the IXL Tastic heat module does a better job at heating the bathroom than the typical heat lamps in a combo device. Heat modules are also slimline and suit bathroom styles more easily than obtrusive heater bulbs.

Did you know that a heat lamp will also help ensure a clean and mould free space all year round?

LED downlights are also a better, stand-alone alternative, especially anti-glare, flush LED downlights that reduce glare while you are under the lights for better aesthetics and light quality.

Best Brisbane electrician | Allyn White Electrician

Installing an inline fan ventilates the bathroom more by extracting the heat and moisture from inside and redirecting it outside. This prevents fogging up the bathroom after a shower and potential mould issues. There are also more options for the grill that you can choose, which makes it easier for you to match colours with other accessories in your bathroom as well as choose the size.

5. Consider heated towel rails

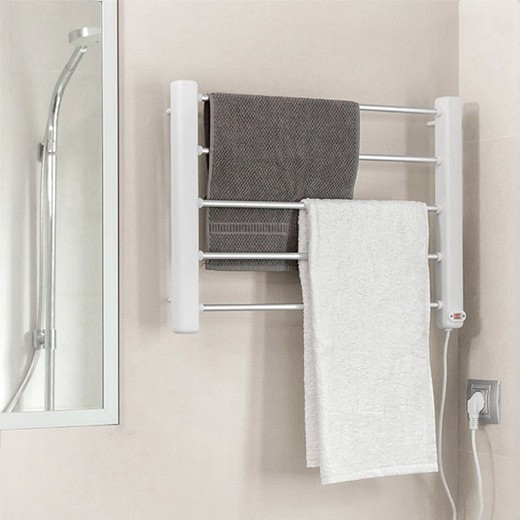

If your budget can afford it, consider heated towel rails. This can heat up your entire bathroom, add value to your home and create the ultimate relaxation during the colder months.

Best Brisbane electrician | Allyn White Electrician

Unlike your toilet or taps, heating is much harder to install post-renovation, and whilst hard-wired towel rails can be installed later, it’s much easier and cheaper to do them before the plastering and tiling are completed.

Contact a Licensed Electrician in Brisbane for Your Home Electrical Maintenance, Repairs, Installations and Lighting advice.

Best Brisbane electrician | Allyn White Electrician

Installation, repairs, upgrades, lighting advice for your home and outdoor spaces. No matter what your home renovation plan calls for, you can trust Allyn White.

With over 45 years of experience in all aspects of domestic, industrial, commercial and emergency electrical work, Allyn will be able to assist with your electrical needs in Brisbane.

For a free quote by a licensed electrician call 0416 235 641 to arrange a time to discuss your electrical needs.

Our charge out rate remains the same during the week, weekends and after hours, so don't hesitate to contact us today!

Source: electricalconnection.com.au
